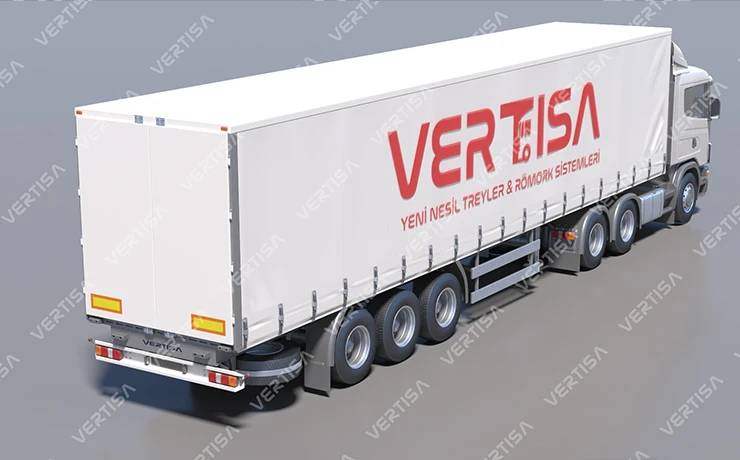

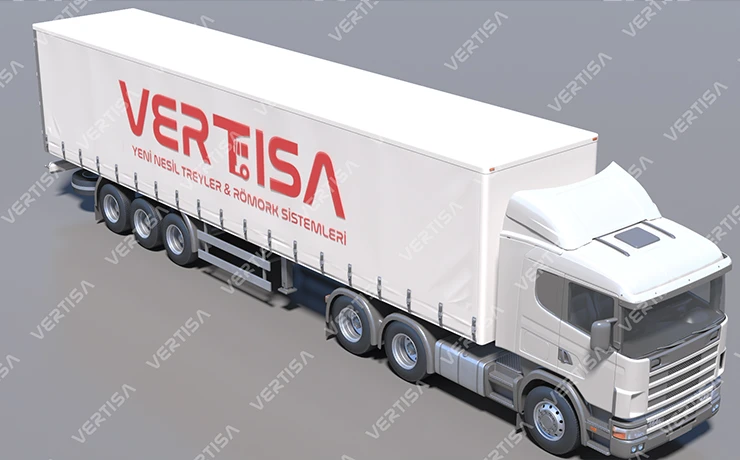

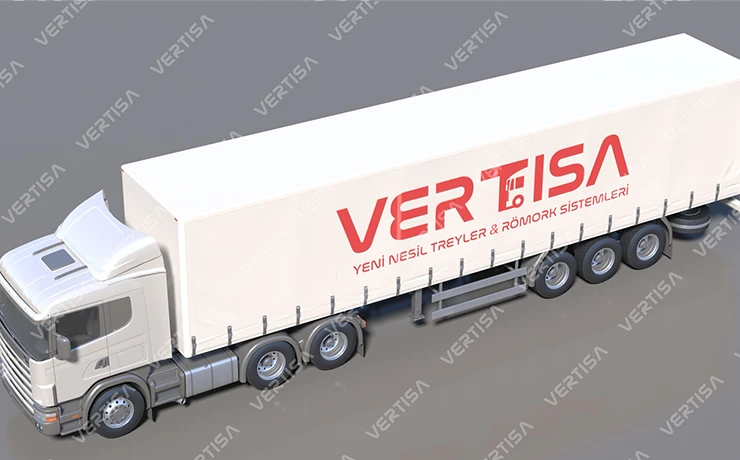

Curtainsider Trailer
Curtainsider Trailer
A Curtainsider trailer is a semi-trailer model consisting of a canvas curtain system that can be opened and closed on the sides. A Curtainsider trailer is an ideal option when the load to be transported needs to be protected from external effects. Curtainsider trailer is also called curtain side flatbed or curtainsider truck. It is fully equipped for long-haul freight transportation. It is frequently preferred in national and international heavy cargo logistics. Curtainsider trailer is produced in different models; multi-ride, mega, curtained double-decker, maxima plus, roller.
Vertisa Trailer produces each of its curtainsider semi-trailer models on a project-based basis for the fast, practical, and safe completion of the transportation operation.
- Catalog not yet loaded
| Technical Specifications |
| 9,000mm-13,600mm front straight line, inner width 2550 mm, height 2440 mm • Mounted with 4 or 5 side panels and covers • Panels are externally attached, measuring 800mm-900mm • Flooring consists of one layer of metal sheet and one layer of wood • “Z” press cross-members placed at intervals for added support CHASSIS • Reinforced “I” section main frame, 120/12.5 mm steel sheet, welded with an automatic submerged arc welding machine for top and bottom lines • These chassis are interconnected to resist bending. |
| Trailer Dimensions |
| 13,600 mm (standard) Extendable Pilot Trailer Model: 13,600 mm + 8,000 mm (max) = 21,600 mm Width: 2550 mm |
| Capacity |
| 27,500 Kg (Maximum gross weight for 2 axles) 35,500 Kg (Maximum gross weight for 3 axles) 43,500 Kg (Maximum gross weight for 4 axles) |
| Axles and Suspension |
| Axles: 2 or 3 axles with a capacity of 9 and 12 tons. Suspension: Parabolic dual-layer “Z” leaf springs and shock absorbers. Axle Lifting: Manual lifting system on the front and middle axles. Brake System: 71/320 brake system in compliance with EC standards. Brake Chambers: 4 emergency brake chambers, 2 service brake chambers. Brake Slack Adjusters: 6 automatic brake slack adjusters installed. |
| Electrical System |
| 2×7 or 15-pin, SAE-standard complete lighting system. LED rear stop lights, 2 white LED front lights, 4 x 2 yellow LED side lights, 2 license plate lights. |
| Tires and Rims |
| (For 2 Axles) 4 x 385/65 R 22.5 or 8 x 12 R 22.5 (For 3 Axles) 6 x 385/65 R 22.5 or 12 x 12 R 22.5 (For 4 Axles) 8 x 385/65 R 22.5 or 16 x 12 R 22.5 |
| Paint |
| After sandblasting, coated with 2+1 layers of epoxy primer and acrylic paint, cured in a special oven paint cabin. |
| Standard Accessories |
| 2’’ King Pin compliant with R55 regulations. Liftable rear bumper, compliant with R58 regulations. Basket-type spare wheel carrier for one spare tire. 2 wheel chocks with holders. 2 ramp resting chocks. Anti-spray quarter mudguards, 4 pcs, compliant with 109/2011 EEC regulations. Sheet metal toolbox with lock, 1 pc. Lighting-equipped, lockable food cabinet, 1 pc. 8 Ro-Ro rings, compliant with TS EN 29367-2 standard. Foldable side guards, compliant with R73 regulations. Retractable rear ladder for trailer access and 1 portable aluminum ladder. Fire extinguisher cabinet, 1 pc. Traction assist. 50-liter plastic water tank. 2 rear roller bump stops, side protection stops for forklift impacts (only for trailers with side covers). 1 collapsible TIR plate compliant with R70 regulation, 2 reflectors, and reflective striping. 1 document case with technical documentation. |
| King Pin |
| 2″ or 3.5″ flanged and bolted, forged steel resistant to high stress and fracture. Easily replaceable via screw connections. E-certified. |
| Panels |
| Panel height: Side and rear panels of the pilot trailer range from 500-800 mm (Standard: 720 mm). Fixed front panel height: 1500 mm (Includes tarp support and climbing ladder). Extendable pilot trailer model: Front panel height 1000 mm, removable with hinges. Flooring: Standard 30 mm resin-coated plywood (reinforced for forklifts) or diamond-pattern steel for alternative uses. |
| Tarpaulin System |
| Roof System: Aluminum rail roof system with 21 crossbeams (non-customs) or 22 crossbeams (customs). Tarpaulin: Manufactured at 12×12 density, weighing 900 g/m², with a tear resistance of 600 N and tensile strength of 4000 N/cm. Side Panels: 4 aluminum panels on each side. Side Structure: 5 aluminum slats above the panels on each side. Rear Door: 2-wing container door with concealed locking system. Locks: Top-opening vertical locks mounted on posts. Front Panel: Made from ST52 A1 quality ERDEMIR steel and fitted with 17 mm MDF internally. Flooring includes 30 mm plywood. |
| Brakes |
| 71/320 / EWG FF brake system in compliance with EC standards. Automatic brake slack adjusters, service brake compartments. EBS 2S/2M – 4S/2M – 4S/3M and RSS (Roll Stability Support) system. |
| Safety |
| Landing Gear: Static capacity of 50 tons, dynamic capacity of 25 tons, with telescopic legs (GOS). Standard safety features for dump trailers. Tilt Alert (Rollover Warning). Safety Brake (Dump Lowering Security). Unloading Level (Spring Unloading System). Finisher Brake. |
| Optional Features |
| 385/55 R 22.5 Tires. Additional row of aluminum profiles under the tarpaulin. 600 mm high, 10 side panels + side forklift impact protectors. Additional basket-type spare wheel carrier. Fixed bumper compliant with R58 regulation. 60-liter stainless steel water tank. Brake system features TIM/SmartBoard. Anti-vandal tarpaulin. 1 lug wrench and handle. 1 fire extinguisher (ADR compliant). If ADR compliance is required, 1×15-pin socket electrical system. EN 12642 Code XL Load Safety Certification. Dual FH adjustable suspension system. |
- Brochure not yet loaded
What Are The Curtainside Trailer Dimensions?
Curtainsider trailer dimensions are projected according to certain standards. Thus, it becomes very easy to find a curtainsider truck suitable for the cargo to be transported. In general, curtain side trailer dimensions;
- The load capacity is 32,800 kg.
- Internal length is 13.62 meters.
- Inner width is 2.48 meters.
- Door opening width and height: 2.45 and 2.67 meters.
These dimensions are the most preferred. According to the need, many features from trailer length to curtain height can be revised. With its 30 years of experience, expert R&D group, and professional manufacturing team, Vertisa continues its solution-oriented production activities for the transportation sector.
Trailer production for every region of the world!
Contact us for all your questions!
What Is Curtainsider Trailer Used For?
The curtainsider trailer is ideal for transferring loads that need to be protected from external elements. It is used to transport different types of cargo such as precision production equipment, automobiles, and even timber. This trailer model is the right choice for a comfortable and safe transfer operation in international transportation. Contact Vertisa to get a quote for the curtainsider trailer that suits your needs.
What are the Advantages of Curtainsider Flatbed?
Curtainsider flatbed is a very helpful long-haul transport vehicle. The high-performance curtain side flatbed is manufactured by Vertisa;
- Thanks to the curtains opened from the sides, it is possible to load the trailer quickly and easily by more than one forklift.
- The material to be transported is protected from climatic conditions using curtains.
- It does not cause any problems legally.
- Length, width, and height are projected according to to need.
- The quality and longevity of the curtains that can be opened contribute economically.
- Since the curtains can be pulled forward or backward, they are very helpful to use.
- Safety kits are used to prevent the curtains from opening or tossing.
- Different types such as multi-ride, mega, and maxima are produced according to the needs.
Vertisa Trailer produces curtain-side flatbeds according to the needs within the framework of wide options. For companies engaged in active transportation in many countries of the world, Vertisa quickly and professionally produces all kinds of curtainsider trailers with the desired features.
Curtainsider Semi Trailer Manufacturing
Vertisa Trailer continues to work completely solution-oriented in the production of Curtainsider semi-trailers. It uses high quality, long-lasting and international standards in its manufacturing works. Vertisa passes all necessary control tests on all types of curtainsider trailers it manufactures.
Multi Ride
Curtain multi-ride with opening curtain and roof feature is a special option developed for transportation. Project-based production is provided by Vertisa with its large volume and long-lasting structure.
Mega
The mega model with curtains, which offers a very large transport volume its internal capacity, is very ideal for safe transportation service thanks to its load lashing system.
Curtained Double Decker
With this model, which has more than 200 fastening holes, a large number of materials are stacked on the platform and its shipment is completed safely.
Maxima Plus
The curtainsider maxima plus, which is manufactured by international cargo transport laws, is a trailer model developed for transportation with its high and wide volume. It provides great benefits in international transportation with its wide load-carrying capacity and safety kits.
Roll
One of the curtainsider trailer models, the roller; was Developed for roll transport. Thanks to the specially designed chassis surface, rolls produced from all kinds of steel or different materials can be safely transported with the role model.
Curtainsider Trailer Price?
Curtainsider trailer prices differ based on models. The prices, which are based on all curtainsider trailer models, which are very useful and durable, are configured by Vertisa in the most appropriate way for users. You can contact Vertisa immediately and get an offer, which guarantees longevity, maximum performance, safety, and a reasonable price for each trailer model produced on a project basis by the road laws for many different countries.
