Tipper Trailer
Tipper Trailer
A Tipper trailer is a trailer solution used for transportation purposes in the construction and mining industry. With the tipper trailer, materials such as sand, gravel, or stone are transported. A tipper trailer is also called a dump trailer. Project-based production is provided for institutions and organizations. Thus, its capacity and dimensions can be increased as needed. Vertisa Trailer listens and understands its customers and produces the most suitable tipper trailer (dump trailer) for them. Exporting tipper trailers to many countries, Vertisa has become a leader with its quality and reasonable prices.
- Catalog not yet loaded
| Technical Specifications |
| Chassis: Reinforced Main Chassis with “I” section. Chassis Material: Composed of 120 x 14 mm laminates and 5 mm S355 chassis sheet. Welding Method: Welded using Submerged Arc Welding Technology. Bumper: Square-section, foldable rear bumper suitable for finisher use. Hydraulic Piston: Uses a 175x5x5550 5-stage tipper piston. |
| Trailer Dimensions |
| Total Length: 8000 mm – 10500 mm (Standard tipper trailer: 8950 mm) Capacity: Adjustable between 20 m³ – 60 m³ (Standard tipper trailer: 24 m³) Width: 2550 mm (Inner trailer body width: 2340 mm) Body Height: 1400 mm – 1570 mm (Standard: 1470 mm) Body Length: 6700 mm – 7600 mm (Standard: 7600 mm) |
| Capacity |
| 27,500 Kg (Maximum gross weight for 2-Axle Tipper Trailer) 35,500 Kg (Maximum gross weight for 3-Axle Tipper Trailer) 43,500 Kg (Maximum gross weight for 4-Axle Tipper Trailer) |
| Tipper Material |
| The tipper trailer floor is made of **4 mm HB 450** (*Brinell Hardness Value: 450, Abrasion-Resistant Steel*), and the sides are made of **4 mm HB 450 material** or customized thickness for excavation, rock, etc. For excavation purposes, **4 mm HB 450 steel** is used, while for rock tipper trailers, **10 mm and 8 mm HB 450 steel** is preferred. Cost-effective solutions can be provided upon request. Available with **mechanical or hydraulic opening door system**. |
| Axle and Suspension |
| Axles: **3×12-ton capacity drum brake axles**. Suspension: **Leaf spring type air suspension**. Axle Lift: **Manual lifting system on the front and middle axles**. Brake System: **2S/2M EBS + RSS brake system**. Brake Chambers: **4 emergency, 2 service brake chambers**. Brake Adjusters: **6 automatic brake adjusters installed**. |
| Electrical System |
| 2×7-pin lighting set used. 7-function rear stop lamps (Horned type). 2 front lamps with white LED lights. 4 x 2 side lamps with yellow LED lights. 2 license plate lamps. |
| Tires and Rims |
| For 2 Axles: **4+1 pieces 385/65 R 22.5 or 8+1 (12 R 22.5)** For 3 Axles: **6+1 pieces 385/65 R 22.5** For 4 Axles: **8+1 pieces 385/65 R 22.5** |
| Paint |
| After sandblasting, **1 coat of epoxy primer** and **2 coats of final paint** in any color and pattern requested by the customer. |
| Standard Accessories |
| Full mudguards (Plastic), Water tank, Tire Chock, Plastic tool cabinet, Manometer (indicates the pressure of the suspension bellows, allowing weight estimation), Aluminum bicycle guard. |
| King Pin |
| **2″ or 3.5″ flanged, bolted, high-stress-resistant, forged steel.** Designed for **easy replacement with screw connections**. **E-certified**. |
| Brakes |
| Brake system compliant with **EC Standards 71/320 / EWG FF**. Automatic brake adjusters, service brake chambers. **EBS 2S/2M – 4S/2M – 4S/3M** and **RSS (Roll Stability Support) system**. |
| Safety |
| Landing Legs: **Static 50-ton, Dynamic 25-ton capacity telescopic legs (GOS).** Standard Tipper Safety and Equipment. **Tilt Alert (Rollover Warning).** **Safety Brake (Tipper Lowering Safety).** **Unloading Level (Spring Unloading System).** **Finisher Brake.** |
| Optional Features |
| Lowbed carrying area with **pool-type European axle group** and all necessary equipment. Aluminum rims. Double spare tire carrier. Fire extinguisher cabinet and extinguisher. Optional tire brand upon request. |
- Brochure not yet loaded
Files not yet loaded
Gallery not yet loaded
Media not yet loaded
What are Tipper Trailer Dimensions?
Tipper trailer dimensions differ from model to model. Standard tipper trailer dimensions;
- Load-carrying capacities: In the range of 20 -80 t.
- External dimensions: It is between 10500 X 2500 X 4000 mm and 11500 X 2500 X 4000 mm.
- Internal dimensions: It is between 10000 X 2300 X 2000 mm and 11000 X 2300 X 2000 mm.
- Tare weight: It varies between 9.50 – 11 tons.
Vertisa continues its manufacturing activities with a production approach that focuses on needs beyond these standards. Focusing on the shortcomings of the transportation sector, Vertisa has been working on domestic and international trailer production for years. Contact Vertisa, which successfully produces tipper trailers for every need with the analysis of its expert R&D group, and experienced production department, and get detailed information.
Trailer Production For Every Region of the World!
Contact Us For All Your Questions!
How does a Tipper Trailer Work?
Tipper semi-trailer types have been developed by an expert R&D group to offer different solutions to the transportation industry. Tipper trailer models offered by Vertisa Trailer for its customers, according to the direction of unloading;
- Rear damper
- It is produced as a side damper.
Each of these models can be changed according to need. Customer satisfaction comes first for Vertisa, which has a solution-oriented innovative perspective.
Tipper Semi Trailer Types
Tipper semi-trailer types have been developed by an expert R&D group to offer different solutions to the transportation industry. Tipper trailer models offered by Vertisa Trailer for its customers, according to the direction of unloading;
- Rear damper
- It is produced as a side damper.
Each of these models can be changed according to need. Customer satisfaction comes first for Vertisa, which has a solution-oriented innovative perspective.

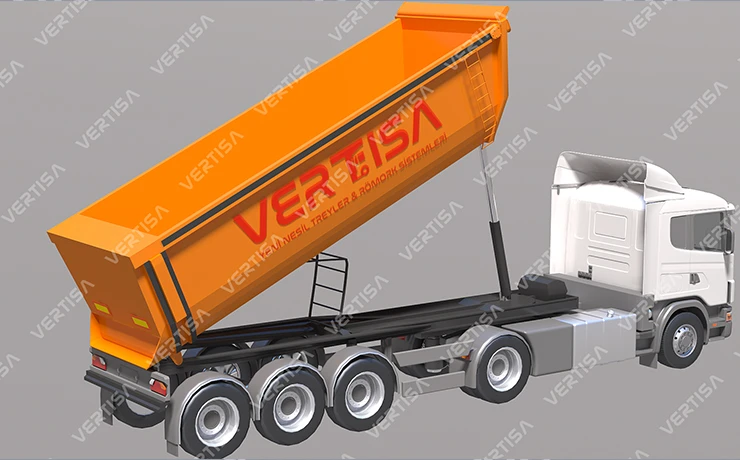

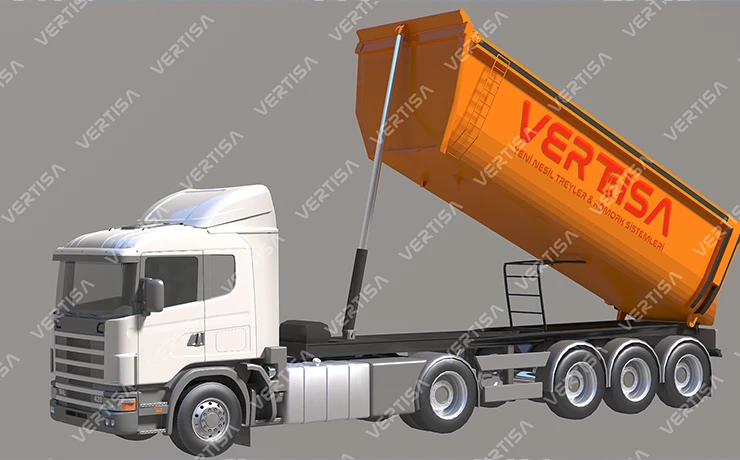

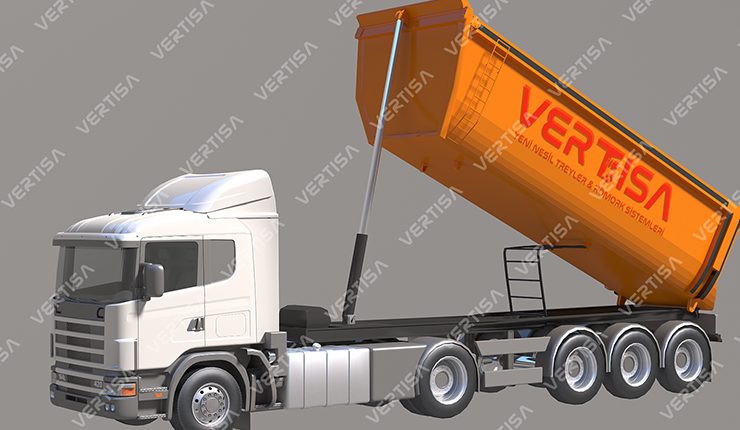

Rear Damper
It is so named because it allows the load to be unloaded to the rear. It is very ideal for material handling operations in construction or construction sites. These trailer models can be manufactured with 2, 3, 4, 5, or 6 axles depending on the need. The trailer capacity increases in parallel with the number of axles. The rear damper is a maximum of 12 m. The use of tippers more than 12 meters can cause very dangerous results. The rear damper is made of very strong steel material to prevent wear depending on the weight and nature of the load.
Side Damper
Unlike the rear damper, the side damper allows the load to be discharged from the side. Sand, stone, or other building materials can be easily transported with the side damper. Likewise, the unloading process is very practical. Tilting to the sides is done by the hydraulic system. That’s why these dumpers are also called hydraulic tipper trailers. The side damper is generally used in situations where space is scarce. Tilting the load to the side requires less space than tipping it to the rear. Also, the side damper has a higher load-carrying capacity. Vertisa manufactures side dampers with 2, 3, 4, 5, and 6 axles according to the needs.
Tipper trailer Van Types by Body Shape
Tipper trailer is designed and manufactured in different types according to the shape of the rear trailer. According to Vertisa van’s body type;
- Box type tipper trailer
- Provides U-type tipper trailer production.
Continuing its manufacturing activities in European standards for many years, Vertisa has focused on the requirements that emerged in the transportation sector over time. He realized that the single type or mass production trailer types make the transport operation more difficult rather than easier. Vertisa, which steers its manufacturing activities with its innovative and modern perspective, has offered professional solutions for the transportation of a load with the right vehicle within the framework of wide options. It has become the leader in the production of tipper trailers with wide options in the country and abroad.
Box Type Tipper Trailer
The box-type tipper trailer is rectangular. The traction force has enough resistance against the load to be carried. It is the most commonly used classic tipper trailer model in the world.

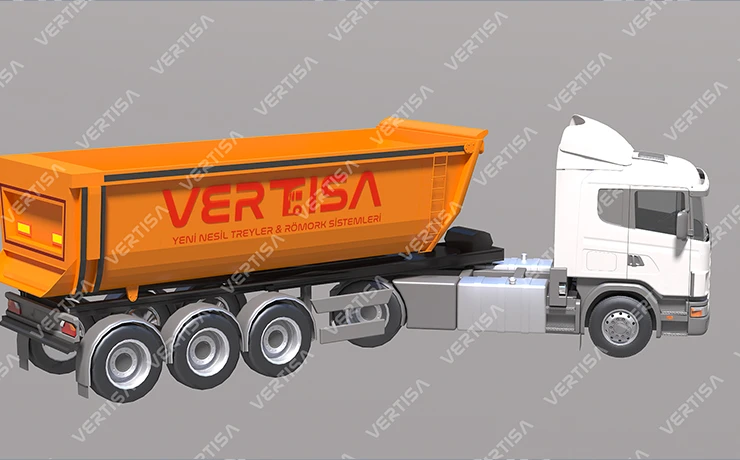

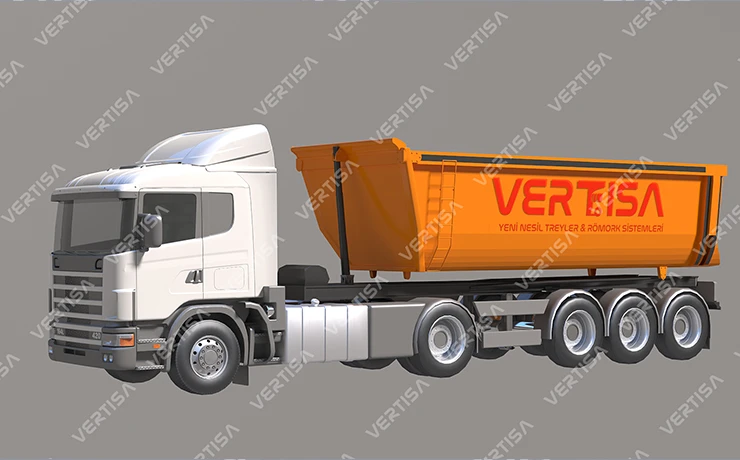

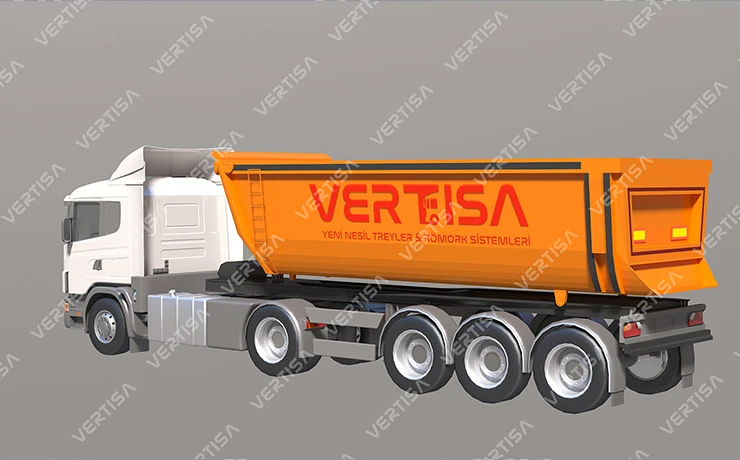

U Type Tipper Trailer
The U-type tipper trailer has a very solid damper. The unloading system works quite fast. This creates the opportunity to save time. The damper part is in one piece. It is highly resistant to abrasion. The load-carrying capacity is quite high. Thanks to its low center of gravity, your transportation operations are carried out safely with the U-type tipper trailer.
Tipper Trailer Manufacturing
Tipper trailer production is carried out entirely in line with the needs of logistics companies. With the tipper trailer produced by European standards, the transportation of construction sites and construction materials is made more practical. The needs of institutions or organizations providing services in the transportation sector are the main starting point for Vertisa. With its expert staff and 30 years of experience, Vertisa listens and understands its customers and carries out special production works.
Tipper Trailer Prices
Tipper trailer prices vary according to model and capacity. Vertisa Trailer has raised the standards with affordable and high-performance trailer models in line with the demands it receives from all over the world. Contact Vertisa, which is committed to fast solutions, expert engineering, precise production, on-time delivery, and reasonable prices, and get a quote.
